Static Sieve Screen

It is a wedge wire bend screen used in physical treatment units of static sieve treatment plants. Static sieves do not have a drive mechanism. Also it need no energy.

Static sieve, especially applied in industrial wastewater treatment plants; textile, paper, slaughterhouse, food and plastic recycling wastewater treatment plants provide effective fine screening.

The static sieve equipment we produce is manufactured from stainless sieve bars called wedge wire slots. The chassis of the equipment is manufactured from AISI 304 stainless steel or epoxy paint protected carbon steel.

Sieve rod opening is projected between 500 microns and 2 mm.

Inlet and outlet are manufactured with flanges, thus facilitating installation.

Static sieve screens are economical due to the fact that they do not use electrical energy compared to rotary disk sieve or rotary drum sieve equipment.

Thanks to the wedge wire stainless rods used in the sieve, it does not cause clogging problems on the sieve.

Table-1 : Static Sieve Screen Options:

Flow Openings Sieve Material Chassis Material
30 m3/hour 0.5-2 mm AISI 304/316 AISI 304, st37 carbon steel
60 m3/hour 0.5-2 mm AISI 304/316 AISI 304, st37 carbon steel
90 m3/sa 0.5-2 mm AISI 304/316 AISI 304, st37 karbon çelik
180 m3/hour 1-2 mm AISI 304/316 AISI 304, st37 carbon steel
250 m3/hour 1-2 mm AISI 304/316 AISI 304, st37 carbon steel
500 m3/hour 1-2 mm AISI 304/316 AISI 304, st37 carbon steel

Static Sieve Bend Screen Advantages

- No energy consumption

- Wedge wire slot non-blocking screen material

- Simple installation and commissioning

- Easy maintenance and service

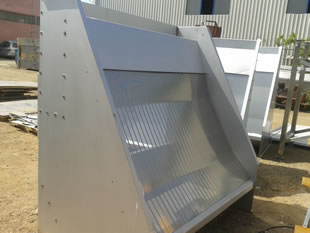

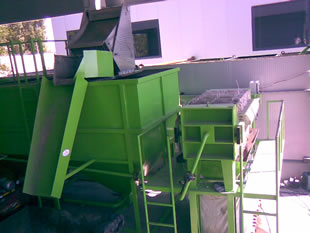

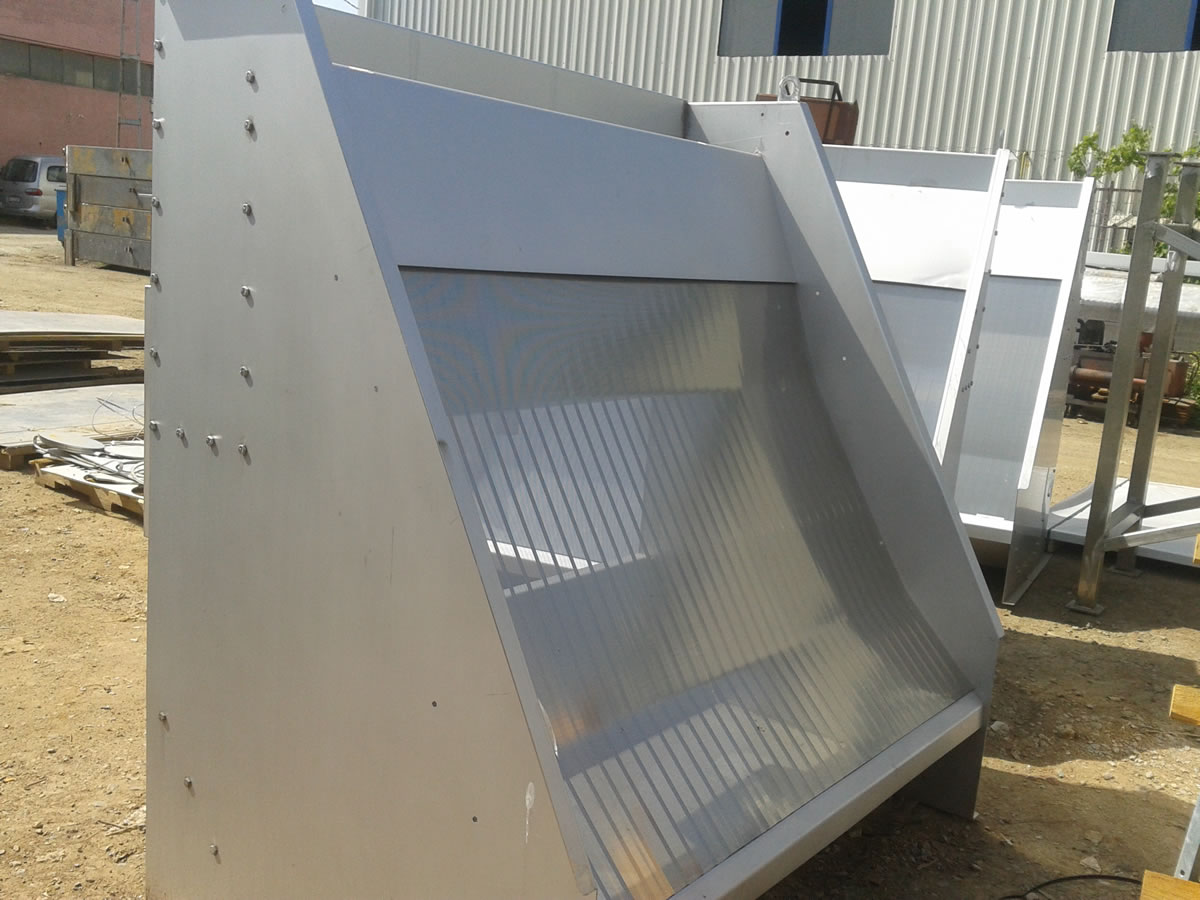

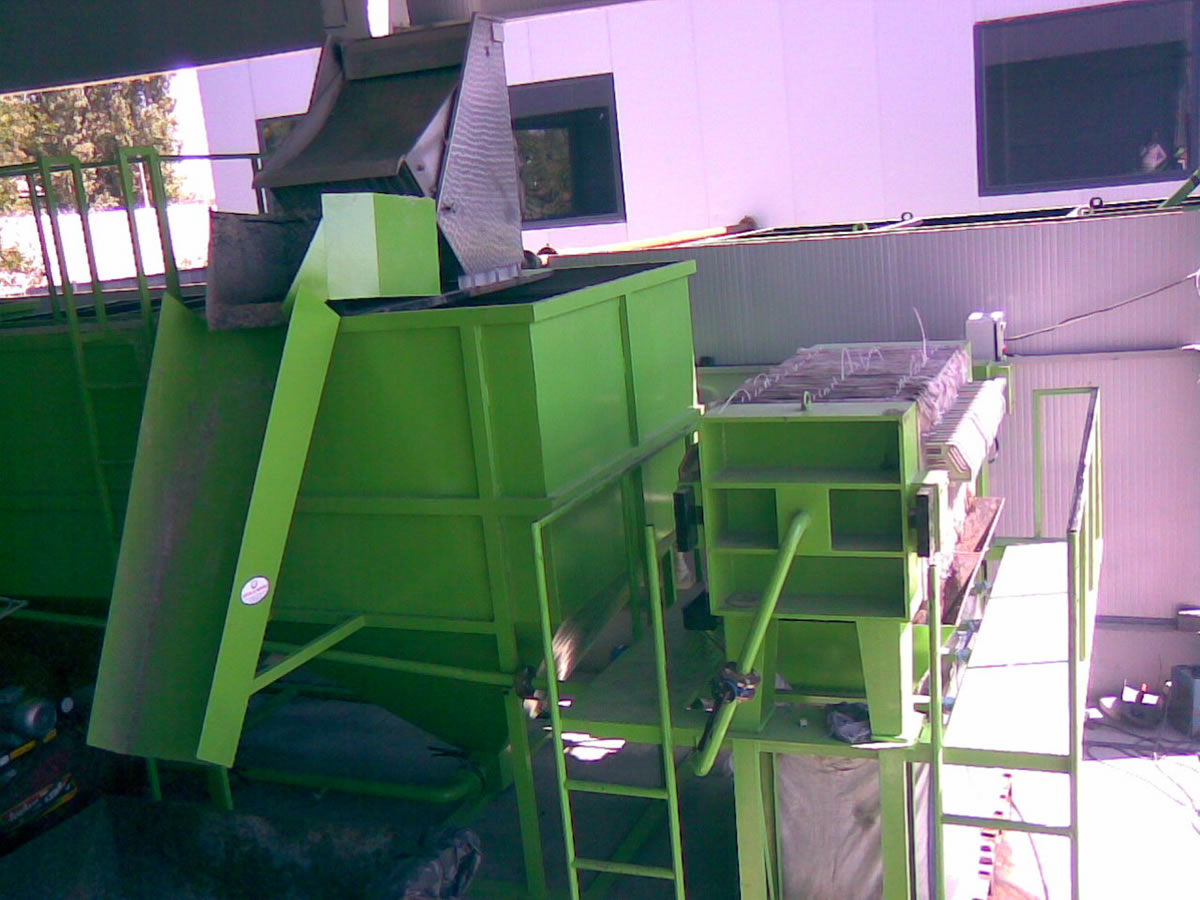

Static Sieve Screen Static Sieve Bend Screen
